Turbine Engine Oil
AeroShell offers a complete range of turbine engine oils – from mineral oil formulations to fully-synthetic high thermal stability oils. AeroShell Turbine Engine Oils have demonstrated their flexibility for use both inside and outside today’s hostile turbine engine environments.
As a trusted authorized distributor of AeroShell, we can offer you the right turbine engine oil for your aircraft based on your requirements. Contact us for more information.
Case Studies
AIRWOLF
Airwolf Aviation Corporation (an agricultural organization in the Philippines) switched to AeroShell Turbine Oil 560 with the help of Alpha Pioneer. Airwolf switched from a competitor oil to ASTO 560 because of its high thermal stability which helped reduce coking in their engines and kept them clean for a long period of time.
Factor 1: Coking Propensity
Coke buildup is another critical problem that leads to engine performance inefficiencies. In order to reduce coking, an HTS oil must be able to withstand engine operating temperatures. Through the hot liquid simulator (HLPS) test, ASTO 560 has proven that it outperforms current standard oils in the market and form the least coke deposits.
Your choice of turbine engine oil must be able to reduce elastomer seal degradation. Excessive degradation or ‘swelling’ can cause oil leakage, which will entail higher maintenance costs for your fleet. With the right mix of anti-oxidants, ASTO 560 has proven to be elastomer-friendly through a standardized elastomer compatibility test over a 24- and 120-hour period.
ASTO 560 shows optimum swelling in elastomer seals compared to a known competitor’s HTS oil.
Factor 2: Elastomer Compatibility
Synthetic Turbine Engine Oils

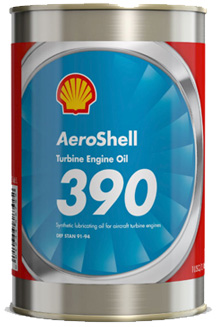

AeroShell Turbine Oil 390
3-centistoke APU Oil
Reliability for Auxiliary Power Units (APUs)
- Reliable APU starting, especially in cold-soak conditions
- Lower maintenance cost from reduced component wear during APU startup
- Helps maximise ETOPS times
- Approved by a wide range of engine/APU manufacturers, including Hamilton-Sundstrand, Honeywell, Pratt & Whitney Canada, Rolls Royce and Turbomeca
Specification and approval
- DEF STAN 91-94 (British)
- All Pratt & Whitney AeroPower and Honeywell APUs
- IPM-10, VNII NP 50-1 4f and 4u, and 36Ku-A (Russian analogue)
- Joint Service Designation OX-7

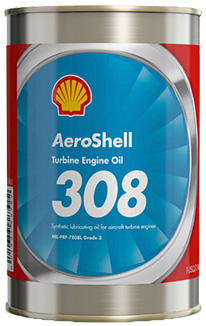

AeroShell Turbine Oil 308
3-centistoke APU Oil
MIL-PRF-7808L Grade 3
Reliability for Auxiliary Power Units (APUs)
- A 3 mm2/s synthetic ester oil incorporating additives to offer better resistance against oxidation and corrosion, and to minimise wear
- Reliable APU starting, especially in cold-soak conditions
- Lower maintenance cost from reduced component wear during APU startup
- Helps maximise ETOPS times.
- AeroShell Turbine Oil 308 was developed specifically for use in particular models of aircraft turbo-prop and turbo-jet engines for which a MIL-PRF-7808 oil is required.
AeroShell Turbine Oil 308 contains a synthetic ester oil and should not be used in contact with incompatible seal materials and it also affects some paints and plastics.
Specification and approval
- MIL-PRF-7808L Grade 3
- O-148
- OX-9
- All Pratt & Whitney AeroPower APUs

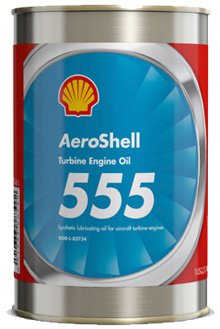

AeroShell Turbine Oil 555
2nd Generation STD Oil
DOF-PRF-85734A
A high load-carrying capacity oil for turbine engines and transmissions
- Reduced maintenance costs and enhanced safety through
– Excellent wear protection
– High thermal stability
– High oxidation stability - Approved by leading helicopter engine manufacturers, including Agusta, Bell Helicopter Textron, Boeing Vertol, Eurocopter, Mcdonnell Douglas, MBB, Sikorsky and Westland Helicopters
Specification and approval
- DOD-PRF-85734A
- DEF STAN 91-100
Mineral Turbine Engine Oils (Engine Preservation)

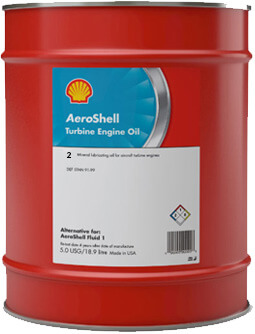

AeroShell Turbine Oil 2
Fuel System Preservation
(2-centistoke)
MIL-PRF-6081 Grade 1010 & 1010N
Mineral turbine oil for fuel system preservation
- AeroShell Turbine Oil 2 is a 2mm²/s mineral turbine oil blended from mineral base stocks to which a pour-point depressant and an anti-oxidant have been added
- AeroShell Turbine Oil 2 is widely used for inhibiting fuel systems and fuel system components during storage
- AeroShell Turbine Oil 2 is an analogue to the Russian Grade MK-8 and can therefore be used in engines which require the use of MK-8
- Preservation of fuel systems and components
Specification and approval
- MIL-PRF-6081 Grade 1010 & Grade 1010N

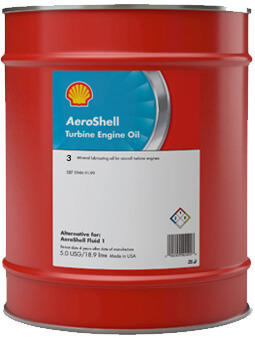

AeroShell Turbine Oil 3
Fuel System Preservation
(3-centistoke)
Mineral turbine oil for fuel system preservation
- AeroShell Turbine Oil 3 is a 3mm²/s mineral turbine oil blended from mineral base stocks to which an anti-corrosion additive has been added
- AeroShell Turbine Oil 3 was developed for early pure jet engines and is still approved for some versions of these engines plus the Turbomeca Astazou, Artouste, Turmo, Bastan and Marbore engines
- AeroShell Turbine Oil 3 is the recommended alternative to AeroShell Fluid 1
- Preservation of fuel systems and components
Specification and approval
- Meets DEF STAN 91-99
- OM-11
- O-135
